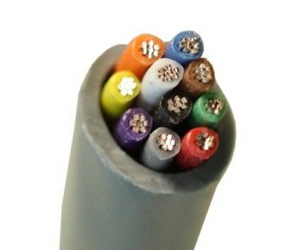

Individual screened instrumentation cable

Introduction

Individual screened instrumentation cable

 1.Application:

 Instrumentation cable can be used in interconnection of process control, communication & panel control systems like oil exploration, cement, paper, steel, power generation and others.

 2.Specifications:

 3.Conductors: Class 5 flexible plain copper

 4.Insulation: PVC / XLPE

 5.Individual shield: Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire for each pair or triad .

 6.Overall  shield:  Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire

 7.Sheath: PVC

 8.Color code :

• Pairs are black,white and alpha numeric coded;
• Triads are black,white,red and alpha numeric coded

9.Voltage: 300/500V , 450/750V , 600/1000V

10.Operating temperature with PVC insualtion : Maximum 70°C

11.Operating temperature with XLPE insualtion : Maximum 90°C

 13.Standard: BS 5308

 14.Other customized options:

• XLPE insulation
• coloured outer sheath
• non-shielded or overall shielded cables upon request
• Galvanized steel wire armoured type
• pairs are binded with Polyester tape and overall shielded with copper wire braidings
• other constructions available upon request
