Welding cable


1.1. The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V. 1.2. The long term permissible working temperature of cable conductive core is not more than 65°C. Nominal Cross-section 10mm2-185mm2
IntroductionInterrelatedQuotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

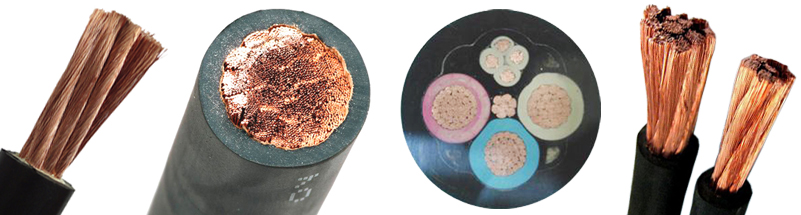

Flexible Copper EPR/ CPE/Rubber Sheath Welding cable

1, Service Cnditions

1.1. The cable can be used in the connectors of electric weld and pliers of the electrical welding
whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V.
1.2. The long term permissible working temperature of cable conductive core is not more than 65°C.
Nominal Cross-section 10mm2-185mm2

Model
Name
Main applications
Working temperature
of core ≤0C
60245-81(YH)
Natural Rubber Sheath for Welding Cable
Always used indoor
65
60245-82(YHF)
Neoprene Rubber Sheath Welding Cable
Always used outdoor
65

2: Model, Names, name applications and work in the temperature

Welding Cable Specification
Cross-section (mm2)
Conductor
Wires*Dia.
Insulation Thickness(mm)

Diameter
Min.
Diameter
Max
Resistance at 20 degree ≤（Ω/km)
Weight
Kg/km
10
322/0.20
1.8
7.5
9.7
1.91
146
16
513/0.20
2.0
9.2
11.5
1.16
218.9
25
798/0.20
2.0
10.5
13.0
0.758
316.6
35
1121/0.20
2.0
11.5
14.5
0.536
426
50
1596/0.20
2.2
13.5
17.0
0.379
592.47
70
2214/0.20
2.4
15.0
19.5
0.268
790
95
2997/0.20
2.6
17.0
22.0
0.198
1066.17
120
1702/0.30
2.8
19.0
24.0
0.161
1348.25
150
2135/0.30
3.0
21.0
27.0
0.128
1648.5
185
1443/0.40
3.2
22.0
29.0
0.106
1983.8

4. Company Information
Henan Huadong Cable company is one of the biggest professional wire and cable manufacturers in China (Mainland), integrating the design, production, sales and service. The factory founded in 2005 and located in Yuezhuang Village, Xindian Town, Xinzheng City, occupying 8,000 square meters. Our annual product capacity is more than 10,000,000 kilometers.
Main products:
Bare stranded conductors, such as AAC, ACSR, AAAC, ACAR, aluminum clad steel conductor; 0.6/1KV aerial bundled cable (ABC Cable), different voltages of XLPE insulated cables, armored cables, control cables, rubber insulated cables, PVC insulated wires and cables, etc
