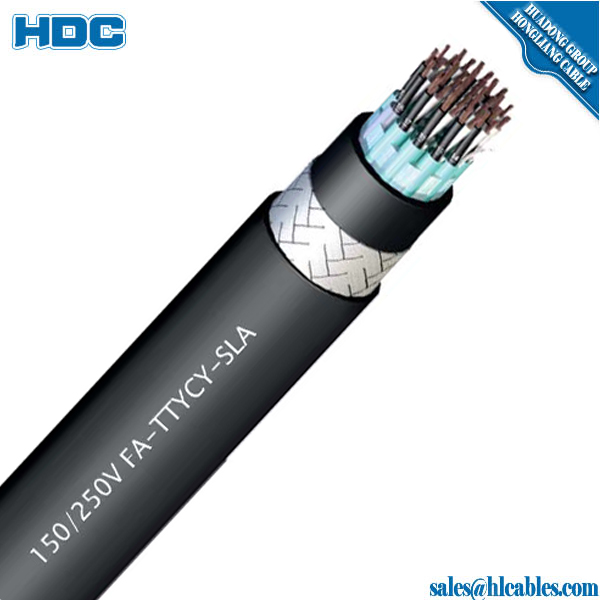

shiping board [FA-]TTY-S,TTYC-S,TTYCY-S,TTPY-S,TTPYC-S,TTPYCY-S,TTYCY Cable
Information Source:Huadong Cable Group-Zhengzhou Hongliang Cable Co., Ltd24 fiber Release date:06/06/2016
application shiping board [FA-]TTY-S,TTYC-S,TTYCY-S,TTPY-S,TTPYC-S,TTPYCY-S,TTYCY Cable Standards:
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)
application shiping board [FA-]TTY-S,TTYC-S,TTYCY-S,TTPY-S,TTPYC-S,TTPYCY-S,TTYCY Cable Structure:
Insulation: 60°C PVC(TTY-type)/ 85°C EPR(TTPY-type) as per JIS C 3401
Twisting: Two Insulated cores shall be twisted together to form a pair
Individual shield: -S, Tinned copper wire braid
Cabling: Twisted pairs shall be cabled;Flame retardant & non-hygroscopic fillers may be used
Bedding: Y PVC as per JIS C 3401
Armor: C Galvanized steel wire braid
Sheath: Y PVC as per JIS C 3401
Core identification: Printed pair number and Alphabet letter on the white insulation.
ex) 4P : (1A, 1B), (2A, 2B), (3A, 3B), (4A, 4B)
- 1T, 1Q cable shall be identified by the black number on the white insulation
(FA-)TTY_S,TTPY_S
| No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Dia. of shield wire |
Thick. of bedding |
(FA-) TTY-S,TTPY-S | ||||
| Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km | |
|
2 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.3 |
14.4 |
0.6 |
200 |
|
4 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.4 |
17.4 |
0.7 |
370 |
|
7 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.5 |
20.9 |
0.9 |
550 |
|
10 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.8 |
27.4 |
1.1 |
880 |
|
14 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
1.8 |
29.8 |
1.2 |
1190 |
|
19 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
2 |
33.6 |
1.4 |
1470 |
|
24 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
2.2 |
39.8 |
1.6 |
1930 |
|
30 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
2.3 |
42.4 |
1.7 |
2280 |
|
37 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
2.4 |
46 |
1.8 |
2740 |
|
48 |
0.75 |
7/0.37 |
1.1 |
0.7 |
0.14 |
2.7 |
53.3 |
1.9 |
3590 |
