H05RR-F flexible cable

1.voltage：300/500V；2.Insulation/Jacket：Rubber；3.Conductor：Copper；4.Standard：IEC/VDE

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Voltage Rating Working: 300/500V, Test: 2000V. Temperature Rating:-25°C to +60°C; Bending Radius:Flexing: 15 x cable diameter; Static: 6 x cable diameter;

Current Rating:H05RR-F Refer to IEE Regs Table 4HF3A&B Conductor Stranding：To IEC 60228

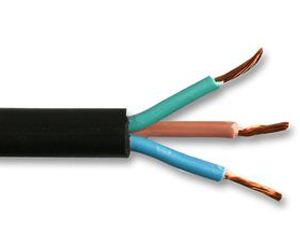

H05RR-F flexible rubber cable Description: H05RR-F rubber cables use a standard grade rubber compound for the cable outer sheath and are suitable for light duty applications. 1. Construction: Fine copper wire strands to IEC 60228 class 5. Rubber insulation colour coded to BS 7671/HD 308 S2. Cores twisted together. Black rubber outer sheath to BS 6500:2000 table 12 and BS 7919:2001 table 10.

2. Application range

• Handheld and power supply devices according to HD 516/VDE 0298-300 • Lightweight workshop tools that are subject to light loads • According to HD 516/VDE 0298-300: dry and damp rooms; only temporary use outdoors; not for industrial/commercial or agricultural facilities, except tailors/cutting workshops; not suitable for supplying industrial power tools • Light & sound technology

3. Benefits • Type-compliant versions -certified with “” testing and certification mark for accelerated granting ofapprovals if final application of cable is within the European CENELEC area

4. Design • Bare copper wire according to HAR • Core insulation: rubber compound type EI 4 • Outer sheath: rubber compound, type EM3

5. Product features : • Ozone-resistant • No flame retardancy according to IEC 60332-1-2

H05RR-F Flexible rubber cable parameter:

NO.of conductor	Conductor		Insulation thickness （mm）	Sheath thickness （mm）	Overall diameter (mm)	Max Conductor resistance at 20℃ Ω/KM
NO.of conductor	Normal area mm²	Construction（NO./mm）
1	0.75	24/0.20	0.8	0.8	4.6±0.2	26	26.7
	1	32/0.20	0.8	0.8	4.8±0.2	19.5	20
	1.5	30/0.25	0.8	0.8	5.1±0.2	13.3	13.7
2	0.75	24/0.20	0.6	0.9	6.4±0.2	26	26.7
	1	32/0.20	0.6	0.9	7.0±0.2	19.5	20
	1.5	30/0.25	0.8	1	8.7±0.2	13.3	13.7
	2.5	49/0.25	0.9	1.1	10.2±0.3	7.98	8.21
3	0.75	24/0.20	0.6	0.9	7.0±0.2	26	26.7
	1	32/0.20	0.6	0.9	7.4±0.2	19.5	20
	1.5	30/0.25	0.8	1	9.1±0.2	13.3	13.7
	2.5	49/0.25	0.9	1.1	10.8±0.3	7.98	8.21
	4	56/0.30	1	1.2	13.3±0.4	4.95	8.09
	6	84/0.30	1	1.4	15.4±0.5	3.3	3.39
4	0.75	24/0.20	0.6	0.9	7.7±0.2	26	26.7
	1	32/0.20	0.6	0.9	8.0±0.2	19.5	20
	1.5	30/0.25	0.8	1	10.1±0.3	13.3	13.7
	2.5	49/0.25	0.9	1.1	12.1±0.4	7.98	8.21
	4	56/0.30	1	1.2	14.8±0.5	4.95	8.09
	6	84/0.30	1	1.4	17.1±0.5	3.3	3.39
