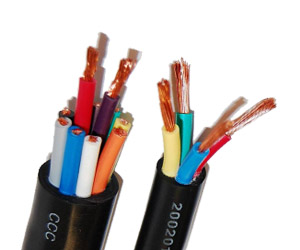

multi core flexible H07RN-F rubber cable

1.Voltage:450/750V; 2.Conductor:copper;3.Sheat:olychloroprene; 4.Conductor Stranding:To IEC 60228 Class 5 & VDE 0295 Class 5

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

H07RN-F rubber cable feature:

H07RN-F is a harmonized, heavy duty and flexible chloroprene sheathed cable; Voltage Rating:Working: 450/750V, Test: 3000V. Temperature Rating:-25°C to +60°C,Static:+85°C;

Bending Radius: Flexing: 15 x cable diameter;Conductor Stranding:IEC 60228 Class 5 & VDE 0295 Class 5 Static: 6 x cable diameter,Current Rating:H07RN-F Refer to IEE Regs Table 4F1A&B;

H07RN-F rubber cable Description:

Used extensively for trailing and flexible supply leads in either single or multicore versions, these H07RN-F rubber cables remain flexible even at sub-zero temperatures.

H07RN-F rubber cables use neoprene (PCP) for its sheath. The improved abrasion resistance and the ability to withstand many oils and chemicals make the neoprene sheathed H07RN-F cables suitable for the most arduous conditions.

1. Construction

Fine copper wire strands to IEC 60228 class 5. Rubber insulation colour coded to BS 7671/HD 308 S2 (cables with over 5 cores, A07RN-F, are number coded). Cores twisted together. Black neoprene (PCP) outer sheath to BS 7919:2001 table 14.

2.Application range

• Handheld and power supply devices according to HD 516/VDE 0298-300

• According to HD 516/VDE 0298-300:... tools, machinery and agricultural devices for medium mechanical stress;for mobile engines and machinery; on plaster; not for submersion except for exceptional, brief flooding (seeH07RN8-F cable for submersible pumps); areas with an explosion hazard, in addition to individual, national provisions/guidelines/legislation/standards/norms that may 3.apply in specific cases

• Dry or damp rooms as well as outdoors (taking into account all normative power characteristics) according to HD 516/VDE 0298-300

• Light & sound technology

4. Benefits

• Heavy-duty, rubber-sheathed cable • High stresses • Permitted up to 1000 V (0.6/1 kV) alternating voltage for protected and fixed installation

• Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with VDE 0100 Part 520

• Type-compliant versions -certified with “” testing and certification mark for accelerated granting of approvals if final application of cable is within the European CENELEC area

5.Design

• Bare copper wire according to HAR • Core insulation: rubber compound type EI 4 • Outer sheath: rubber compound, type EM2

6. Product features

• Flame-retardant according to IEC 60332-1-2 • Oil-resistant according to EN 60811-2-1

• Normatively not ozone-resistant according to HD 22.4/VDE 0282-4 and HD 22.1/VDE 0282-1

Part No.	Cores x mm²	Weight kg/km	O/D mm
57101002	2 x 1.0	92	8.3
57101003	3 G 1.0	111	8.9
57101004	4 G 1.0	134	9.7
57101501	1 x 1.5	48	5.9
57101501-IN	1 x 1.5	48	5.9
57101502	2 x 1.5	109	8.7
57101503	3 G 1.5	137	9.7
57101504	4 G 1.5	169	10.7
57101505	5 G 1.5	206	11.6
57101507	7 G 1.5	371	16
57101512	12 G 1.5	546	20
57101519	19 G 1.5	777	23.5
57101527	27 G 1.5	1090	27.5
57101537	37 G 1.5	1300	31
57102501	1 x 2.5	62	6.5
57102502	2 x 2.5	162	10.6
57102503	3 G 2.5	198	11.4
