Introduction

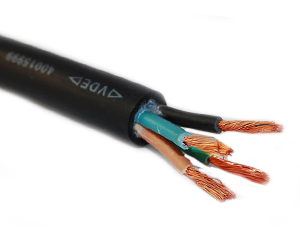

H07ZZ-F flexible rubber cable Structure:

H07ZZ-F is a heavy duty, halogen-free, harmonized, and flexible multi conductor cable. Standards:CENELEC HD22-13, NFC 032-131, IEC 60332-3

Conductor: Class 5 flexible plain copper to BS EN 60228: 2005 (previously BS6360).

Insulation:Halogen-free elastomer Sheath:Halogen-free elastomer; Sheath Colour: Black;

Voltage Rating: 450/750V ; Temperature Rating: Conductor operating temperature -25° C to +60° C (85° C max)Minimum Bending RadiusFixed: 4 x overall diameter;Flexing: 6 x overall diameter

H07ZZ-F flexible rubber cable Description:

H07ZZ-F cables feature a range of properties including; harmonized, halogen free, heavy duty, flexible and black jacketed multi-conductor 750V. They are considered a European cable and are recommended for applications when halogen-free, low smoke and corrosive gas properties are required in case of fire. They are designed for use in electrical equipment under medium stress in dry and damp interiors.

H07ZZ-F cables are often found in applications like boilers, heating plates, hand lamps, electric tools and transportable motors and machines. Although they can be used outdoors safely, they are not suited to continuous outdoor usage.

The cable is also suitable for wiring in places such as rail tunnels, roads, on-stage technology, industrial installations and hospitals, warehouses, train stations, ships, hospitals, airports and public buildings to ensure that sufficient power and energy – in whatever form is supplied appropriately.

Due to its halogen free material, the cable has a huge range of uses and will withstand a moderate amount of mechanically stress. These cables are available from Lapp UK, a supplier that can deliver top quality, safe, tested and excellent value cable products for all of your applications – all over the world. Check them out for more information, their entire range and a breakdown of their products and services.

Cable benefits:

• Wide range of uses due to halogen-free materials

• Cable in accordance to VDE 0100-711, cables with low smoke emissions are now required in buildings, exhibitions, shows and stands that don’t operate a fire alarm system

• H07ZZF cable from Lapp UK are type-compliant <HAR> certified with “<HAR>” testing certification marks for accelerated granting of approvals if final application is within the European CENELEC area.

Application range:

• Stage, sound and lighting technology

• Mobile equipment and machinery

• Dry and damp rooms, as well as outdoors according to HD 516/VDE 0298-300

• Building or industrial plants that have a high density of people or valuable assets

Design:

• Strands of bare copper wires

• Core insulation: Halogen-free rubber compound

• Outer sheath: rubber compound, halogen free

Product features:

• Low amount of corrosive gases in the event of a fire

• Flame-retardant according to IEC 60332-1-2 and bundle flame test in accordance to IEC 60332-3-24/EN 50266-2-4

• Low smoke/density in the event of a fire, meaning better chance of escape and safety for people and assets present; according to HD 22, EN 50363-6, EN 60811-2-1, EN 50396-8.1.3

H07ZZ-F flexible rubber cable Parameter:

No. of Cores x Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Weight
mm²	mm	kg/Km
H07ZZ-F Cable - 1 Core
1 x 25.0	15.8	415
1 x 35.0	17.9	539
1 x 50.0	20.6	740
1 x 70.0	23.3	989
H07ZZ-F Cable - 2 Cores
2 x 4.0	15.1	255
2 x 6.0	16.8	335
2 x 16.0	25.7	821
2 x 25.0	30.7	1172
H07ZZ-F Cable - 3 Cores
3 x 6.0	18	440
3 x 10.0	24.2	800
3 x 16.0	27.6	1150
3 x 25.0	33	1680
3 x 35.0	52	2170
H07ZZ-F Cable - 4 Cores
4 x 50.0	47.5	3212
4 x 70.0	54.5	4320
4 x 95.0	60.5	5572
H07ZZ-F Cable - 5 Cores
5 x 16.0	33.3	1534
5 x 25.0	38.4	2291
5 x 35.0	42	2700
5 x 50.0	53	3950
