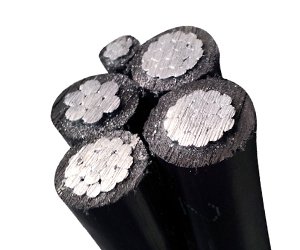

NFC33-209 Standard ABC Cable

1:0.6/1KV Aerial Bundle Cable,2:Insulation:XLPE,3.Conductor:AL 3:IEC,NFC3,ICEA,SANA Standard

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

NFC 33-209 Standard XLPE ABC cable feature:

1. Standard: NFC 33-209. 2. Phase conductor: Stranded All Aluminum 1350; AAC. 3. Phase conductor Insulation: XLPE.

4. Neutral conductor: All aluminum alloy. 5. Neutral conductor insultation: XLPE.

6. Lightning conductor: Stranded All Aluminum 1350; AAC. 7. Lightning conductor insulation: XLPE. 8. The Rated Voltage: 0.6/1KV.

Application: Aluminium NFC 33-209 service bundled conductors are used for tributary networks of power buildings and their internal networks.

Characteristics: The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.

Some other important cable characteristics are :1. Ultraviolet radiation resistance, Ozone resistance, High dielectric strength, Light and easy to handle.

Installation: The NFC 11-201 standard´s procedures determine the installation procedures for low voltage overhead lines.

These cables are NOT ALLOWED to be buried, even in conduits.

Neutral : 211 NFC 33-209 211 « manufacturing number », « metric marks » ink printed.

Phase 1, 2, 3 :

the identification number is printed and embossed on insulation.

Pilot wire n°1 : continuous white line is printed on the insulation

Pilot wire n°2 : no marking

ELECTRICAL CHARACTERISTICS

Rated voltage : 0.6/1 kV Test voltage : 4 kV AC

Resistance to voltage surges : 1.2/50µs with a positive or negative polarity and a peak value of 20 kV.

parameter:

Name		Conductor					Average Thickness of Insulation.	Cable
Name		Conductor					Average Thickness of Insulation.	Cable
Properties	Nominal area	Nos. of Wires	Max. Resisitance.	Dia. of Conductor		Breaking load	(Specified value)	Outer Diameter


			20℃	Min.	Max.	Min.		Min.	Max.
	(mm²)		(Ω/km)	(mm)	(mm)	(daN)	(mm)	(mm)	(mm)
Phase conductor or Public lightning conductor or	16	7	1.9l	4.6	5.1	190	1.2	7	7.8
	25	7	1.2	5.8	6.3	300	1.4	8.6	9.4
	35	7	0.868	6.8	7.3	-	1.6	10	lO.g
	50	7	0.641	7.9	8.4	-	1.6	11.1	12
	70	12	0.443	9.7	10.2	-	1.8	13.3	14.2
	95	19	0.32	11	12	-	1.8	14.6	15.7
	120	19	0.253	12	13.1	-	1.8	15.6	16.7
	150	19	0.206	13.9	15	-	1.7	17.3	18.6
Neutral conductor	54.6	7	0.63	9.2	9.6	1660	1.6	12.3	13
	70	7	0.5	10	10.2	2050	1.5	12.9	13.6
	95	19	0.343	12.2	12.9	2750	1.6	15.3**	16.3**
Testing line	1.5	1	12.1	-	1.5	-	1.2	3.7	4.2
