Instrument Cable, Cu/XLPE/IS/OS/SWA/PVC

Instrument Cable, Cu/XLPE/IS/OS/SWA/PVC IS: Aluminum film/Copper Wire Braiding OS: Aluminum film/Copper Wire Braiding

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

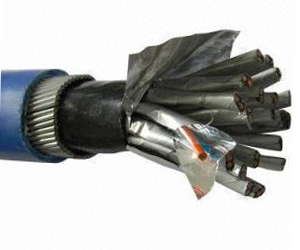

Instrument Cable, Cu/XLPE/IS/OS/SWA/PVC

Applications: To supply control service

Construction:

Conductor: Copper wire

Insulation: XLPE/PE

IS: Aluminum film/Copper Wire Braiding

OS: Aluminum film/Copper Wire Braiding

Bedding: PVC

Armor: SWA

Sheath: PVC

Standards: IEC

Specifications
Application	Fixed wiring,civil power,mobile equipment
Rated Voltage	450/750V More than 1.5mm2 single core conductor
	300/350V Less than 1.5mm2 single core and muticore conductor
	300/300V Less than 1.5mm2 multicore conductor
Test Voltage	AC 1500V/5Min for 0.5~1mm2 multicore conductor
	AC 2000V/5Min for 0.5~1mm2 single core and multicore conductor
	AC 2500V/5Min other
Color of Insulation	Red,Yellow,Green,Light blue,White,Black,Grey,Brown,Orange,Violet,Yellow/Green

Manufactured Standards	IEC 60227-2007
Conductor type	IEC 60228-2004 class 1,class 2,class 5 and 6
	Nominal Cross-section area:0.12~400mm2
	We can produce according to our client's need and provide technical date.
Packing	Can be supplied in any length required.
Notes	1.Ambient temperature for insulation shall not be lower than 0 C.
	2.At nominal conditions,the conductor's operating temperature is -15 C to +70 C.
	3.Fire resistant wire conform to IEC 60331-2009,Flame resistant resistant wire conform to IEC 60332-2004.
