Individual screen instrument cable
Introduction

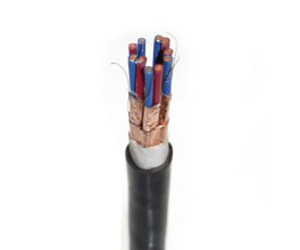

Individual screen instrument cable
1.The product conforms to Q/321084 KLA049-2004, Q/321084 KLA052-2004, equal to the British BS5308-86
2.Application
It applies to the computer, automatic and other corresponding systems of power generation, smelting and petrochemistry
3.Service Characteristics
Rated voltage U0/U: 450/750V
Operating Temp: For general type, it should not exceed 70
For XLPE type, it should not exceed 90
For resistance to heat ending with 105≤ 105
The Shortest Bend Radius: For cables without armor ≥ 6X outer diam.
For cables with armor≥ 12X outer diam.
|
Serial Number |
Types |
Descriptions |
|
1 |
DJVPV |
PVC insulated, pair-twisted Cu wire woven, divided screen, PVC sheathed computer control cable |
|
2 |
DJVPVP |
PVC insulated, pair-twisted Cu wire woven, divided and total screen, PVC sheathed computer control cable |
|
3 |
DJVVP |
PVC insulated, pair-twisted Cu wire woven, total screen, PVC sheathed computer control cable |
|
4 |
DJVP2V |
PVC insulated, pair-twisted Cu tape divided screen, PVC sheathed computer control cable |
|
5 |
DJP2VP2 |
PVC insulated, pair-twisted Cu tape divided and total screen, PVC sheathed computer control cable |
|
6 |
DJVVP2 |
PVC insulated, pair-twisted Cu tape total screen, PVC sheathed computer control cable |
|
7 |
DJVP3V |
PVC insulated, pair-twisted AL/plastic combined tape, divided screen PVC sheathed computer control cable |
|
8 |
DJVP3VP3 |
PVC insulated, pair-twisted AL/plastic combined tape, divided and total screen PVC sheathed computer control cable |
