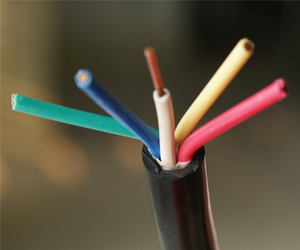

Control cable

Introduction

I.Application

It is used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines.

II. Performance Characteristics:

1.The long-time working temperature of conductor of PVC insulated control cable is 70°C

The long-time working temperature of conductor of XLPE insulated control cable is 90°C

2.During short circuit(max permanent time is not more than 5 seconds),the max temperature of cable conductor is not more than 160C

3..Ambient temperature is not lower than 0 °C

4.it's minium bending when cable is installed

Unarmored 6D(D=overall diameter)

Armored or copper-tape screened 12D(D=overall diameter)

Shielded flexile cable 6D(D=overall diameter)

III.Standard:

IEC 60227

GB 5023.7-1997

DIN VDE 0245/0281

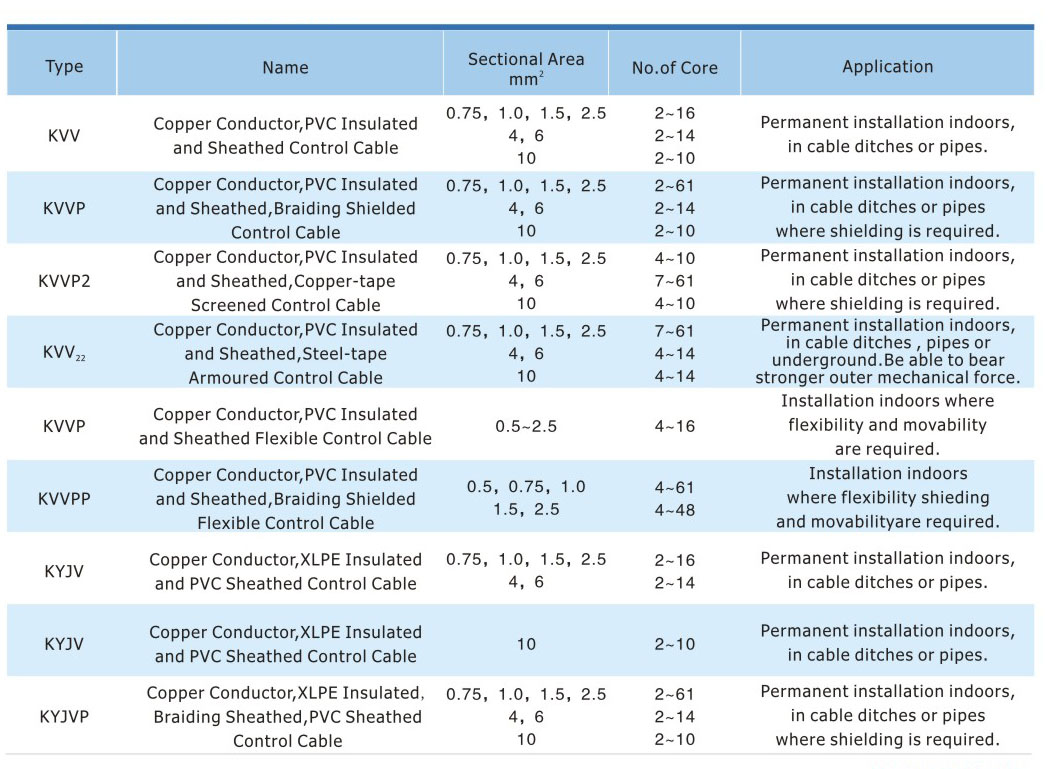

IV. Types and descriptions:
