0.6-1KV Cu/Al PVC/XLPE SWA/STA armored Power Cable


1.Voltage:0.6-1KV; 2. Armoured: Steel tape armoured/Steel wire armoured ; 3.Conductor:copper or aluminum ; 4.Insulation:XLPE/PVC ; 5.Sheth:PVC/PE.

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

0.6-1KV Cu/Al PVC/XLPE SWA/STA armor Power Cable Description:

Conductor Material: Copper/Aluminum IEC60228     Conductor Flexibility:     Stranded class 2
Conductor Shape:  1.0mm2 up to 16mm2    Circular ,  25mm2 up to 400mm2   Sector-shaped
Insulation:   XLPE (Cross-linked Polyethylene)/PVC IEC60502 Armour Type:  Galvanized steel wires/ steel tape
Sheath: PVC/PE IEC60502   Sheath Colour:    Black        Lead Free: Yes
Rated Voltage Uo/U (Um):  600/1000V, BS5467     Installation Temperature: Minimum: 0°C,Maximum: 60°C
Installation Type: Outdoor Direct burial     Operating Temperature: Maximum: 90°C Short-circuit Maximum Conductor Temperature:  250°C
Flame Retardant:  IEC 60332-1 Bending Radius:  1.5mm2 up to 16mm2 = 6 x 0 25mm2 up to 400mm2 = 8 x 0

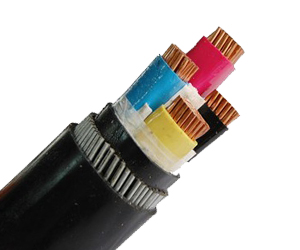

LV armoured power cable
0.6-1KV Cu/Al PVC/XLPE SWA/STA armor Power Cable Type:

TYPE

Description of Cable

Main Applications

CU core

AL core

VV22

VLV22

Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable

Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces.

VV23

VLV23

Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable

VV32

VLV32

Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable

Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces.

VV33

VLV33

Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable

VV42

VLV42

Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable

Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces.

VV43

VLV43

Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable

YJV22

YJLV22

XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable

For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force.

YJV23

YJLV23

YJV32

YJLV32

XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable

For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force.

YJV33

YJLV33

YJV42

YJLV42

XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable

Able to bear positive pressure and pulling force

YJV43

YJLV43


0.6-1KV Cu/Al PVC/XLPE SWA/STA armor Power Cable Parameter:

SWAPVC4X1.5

4 x 1.5

7/0.53

351

12.88

20s

0.5

12.1

32

SWAPVC4X2.5

4 x 2.5

7/0.67

429

14.43

20s

0.6

7.41

42

SWAPVC4X4.0

4 x 4.0

7/0.85

538

16.87

20

0.6

4.61

55

SWAPVC4X6.0

4 x 6.0

7/1.04

670

17.87

20

0.7

3.08

69

SWAPVC4X10

4 x 10

7/1.35

998

20.1

25

0.8

1.83

92

SWAPVC4X16

4 x 16

7/1.70

1,272

22.4

25

0.9

1.15

119

SWAPVC4X25

4 x 25

7/2.14

1,940

27

32

1

0.727

152

SWAPVC4X35

4 x 35

7/2.52

2,390

30.1

32

1.2

0.524

182

SWAPVC4X50

4 x 50

19/1.78

2,925

31.5

32

1.4

0.387

217

SWAPVC4X70

4 x 70

19/2.14

4,200

37.4

40

1.6

0.268

266

SWAPVC4X95

4 x 95

19/2.52

5,355

40.9

50s

1.8

0.193

319

SWAPVC4X120

4 x 120

37/2.03

6,925

46.6

50

2

0.153

363

SWAPVC4X150

4 x 150

37/2.25

8,200

50.2

50s

2

0.124

406

SWAPVC4X185

4 x 185

37/2.52

9,975

55.8

63s

TC9

0.0991

458

SWAPVC4X240

4 x 240

61/2.52

12,700

62.5

63

TC10

0.0754

529

SWAPVC4X300

4 x 300

61/2.85

15,275

67.4

75s

TC11

0.0601

592

SWAPVC4X400

4 x 400

61/3.20

19,875

77

75

TC12

0.047

667
