Aluminum Alloy or aluminium concentric cable


1.Voltage:0.6/1kv,2.Insulation: XLPE (Cross-linked Polyethylene), Condctor:AAC/AAAC,

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

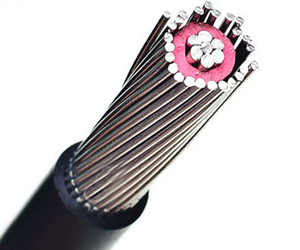

 Aluminum Alloy or Aluminum concentric cable description:

1. application:The cables aluminum alloy/aluminum concentric cable are use for the service-entrance.

2.Construction

Rated Voltage: 600/1000V

Conductor: Solid or stranded Aluminum / Aluminum Alloy conductor

Insulation: XLPE, PVC, PE

Neutral conductor: Helically Al/Aluminum Alloy wire with coverage 100% and non-100% coverage

External coverage: Weather resistant material, XLPE, PVC, PE

3. Characteristic

Structure: solid or roughly stranded (class 2) Al/Aluminum Alloy conductor, with PVC core insulation, extruded belt layer, concentric conductor,

copper binding tape, black PVC covering.Field of application: for internal space, in cable channels and free. In power stations, in industrial units

and in control equipments, if any mechanical protection isn’t ordered.

 Aluminum Alloy or Aluminum concentric cable  parameter:

Section

Phase

Neutral

Insulation Thickness

Sheath

conductor

conductor

conductor

Thickness

material

AWG

NO./mm

NO./mm

mm

mm



2*6+1*6

7/1.56

8/1.46

1.14

1.14

AL or 8000 AL or copper

2*8+1*8

7/1.23

65/0.45

1.14

1.14

AL or 8000 AL or copper

2*4+1*4

7/1.96

65/0.64

1.14

1.52

AL or 8000 AL or copper
