Introduction

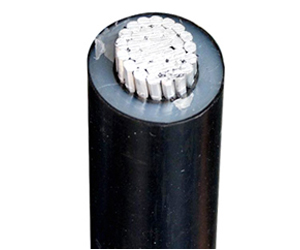

1-35KV Cu/Al XLPE unarmored Power Cable Description:

1. Construction Characteristics

Rated Voltage Uo/U (Um): 1/35kv Volts–S5467 IEC60502-1 ; Conductor cross-section:25mm2-800mm2;

Conductor material: Copper/Aluminum–IEC60228 ; Conductor flexibility: Stranded class 2

Insulation: XLPE (Cross-linked Polyethylene)–IEC60502; Inner sheath: PVC-IEC60502

Armour type: Galvanized steel wires/steel tape; Outer sheath: PVC /PE– IEC60502

Colour: Black ; Lead free: Yes

2. Usage Characteristics

Minimum installation temperature: 0°C ;Maximum installation temperature: +60°C

Installation type: Outdoor – Direct burial; Minimum operating temperature:-15°C

Maximum operating temperature: 90°C; Short-circuit max. conductor temperature: 250°C

Flame retardant: BS EN 60332 / IEC 60332-1

1-35kv Cu/AL XLPE Unarmoured Power Cable Type:

Type			Core	Rate voltage kV

				3.6/6、6/6		6/10、8.7/10	8.7/15、12/20	18/20、26/35
				Nominal Cross Section mm²
YJV	YJLV		1	25~300		25~300	35~300	50~300
YJY	YJLY
YJV	YJLV		3	25~300		25~400	35~300	50~300
YJY	YJLY
Type			Name		Application
Cu conductor		AL Conductor
YJV		YJLV	XLPE Insulated,PVC or PE S heathed Power Cable		or laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid.

1-35KV Cu/Al XLPE Unarmoured Power Cable Parameter:

Nominal Cross Sectionmm²	D.C.resistance is not more than at 20℃Ω/km
	Copper	Alumunim
25	0.727	1.2
35	0.524	0.868
50	0.387	0.641
70	0.268	0.443
95	0.193	0.32
120	0.153	0.253
150	0.124	0.206
185	0.0991	0.164
240	0.0754	0.125
300	0.0601	0.1
400	0.047	0.0778
