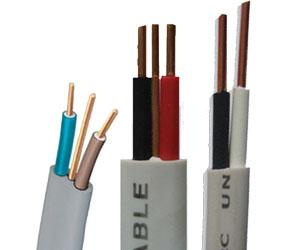

Flat Twin wire


1. Conductor: Plain annealed copper,2.Insulation: PVC,3.Sheath: Easy-tear White,4.Voltage:450/750V

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Application:
Easy-tear sheath for general wiring, unenclosed, closed in conduit buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage.
Conductor:
Plain annealed copper (AS/NZS 1125)
Insulation: PVC V90
Sheath: 3V-90 Easy-tear White
Voltage: 450/750 V
Standard: AS/NZS 5000.2
Packing Length: 100m, 500m
Normal Operating Temperature: 75°C
Core Colours: Twin & Twin Active - Red & Black or Red White (Twin Active)
BSI Logo Other types and/or other lengths of the above cables can be manufactured in accordance with customer's request and requirements of relevant standards.
Parameter:

Conductor

Insulation thickness
(mils)

Sheath thickness
(mils)

Norminal O.D.
(mils)

Approx. Mass
kg/km

stranding No./mm

2x1/1.13

0.6

0.9

6.6x4.2

55

2x7/0.50

0.6

0.9

7.4x4.7

80

2x7/0.67

0.7

1

9.0x5.6

125

2x7/0.85

0.8

1.1

10.7x6.6

155

2x7/1.04

0.8

1.1

11.8x7.2

215
