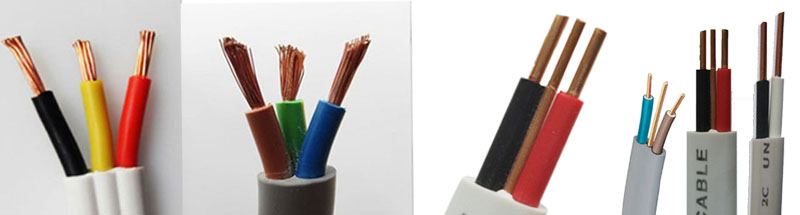

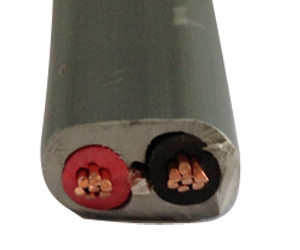

TPS flat twin and earth wire cable
1.Voltage Rate: 300/500V 450/750V,2.Conductor Material: Copper,3.Colours: Red, Black & Green/Yellow;
Introduction
Product feature:
Conductor Type: copper Solid,stranded Insulation Material: PVC Jacket: PVC
Color: Black or as per requirement, Standard: IEC 60227, BS 6004, VDE0281, JB/T8734 Cores:2C, 3C, 2C+E, 3C+E
Certification: ISO9001/ISO14001 /OHSAS18001/CCC Standard: AS/NZS 5000.2
Type Twin and Earth Cable, Flat Twin and Earth , LSF, LSOH, OHLS Twin & Earth Cable
Range of Nominal cross section: 1.0 mm2 ~ 16 mm2
Application: These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial aaplications where not subject to mechanical damage.
Constructions:
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded
Insulation: V-90 PVC Sheath: 3V-90 PVC easy tear
Core color: red and black for active core, green/yellow for earth core, white for sheath
Max. Operating Temperature: 90°C
Core Colours: Red, Black & Green/Yellow; Red, Blue, White & Green/Yellow
parameter:
|
No.of Cores x |
Main |
Normal |
Normal |
Earth |
Over |
Type |
|
Nominal Cross |
Conductor |
Thickness |
Thickness |
Conductor |
Diameter |
|
|
Sectional Area |
Type |
of Insulation |
of Jacket |
Area |
of Cable |
|
|
(mm2 ) |
(mm) |
(mm) |
(mm2 ) |
(mm) |
||
|
1 |
solid |
0.6 |
0.9 |
1 |
8.9*4.2 |
2C+E |
|
1.5 |
Strand |
0.6 |
0.9 |
1.5 |
9.9*4.5 |
2C+E |
|
2.5 |
Strand |
0.7 |
1 |
2.5 |
11.8*5.4 |
2C+E |
|
2.5 |
Strand |
0.7 |
1 |
2.5 |
12.2*54 |
2C+E |
|
4 |
Strand |
0.8 |
1.1 |
2.5 |
13.9*6.3 |
2C+E |
|
6 |
Strand |
0.8 |
1.1 |
2.5 |
15*6.9 |
2C+E |
|
1.5 |
Strand |
0.6 |
0.9 |
1.5 |
12.6*4.5 |
3C+E |
|
1 |
solid |
0.6 |
0.9 |
|
6.5*4.2 |
2C |
|
2.5 |
Strand |
0.7 |
1 |
|
8.9*54 |
2C |
|
4 |
Strand |
0.8 |
1.1 |
|
10.5*6.3 |
2C |
|
1 |
solid |
0.6 |
0.8 |
|
4 |
Single core |
|
4 |
Strand |
0.8 |
0.9 |
|
6 |
Single core |
