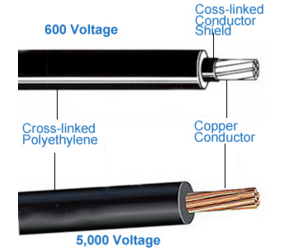

600/500V Airport Ligting Cable
1. Voltage: 600/5000 Voltage; 2. Conductor: Copper; 3.Shield: Cross-linked Polyethlene(XLPE)-5kv; 4Insulated: Cross-linked Polyethlen...

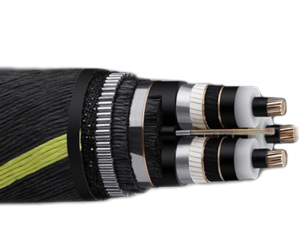

MV Aerial bundle cable
1.Voltage：10kv 33kv,2.support conductor:galvanized steel wire messenger

NEWS & EVENTS

CONTACT US

Tel: +86-371-6676-6667
E-mail: sales@hlcables.com
Fax:+86-371-8751-3085
Msn: WhatsApp:8615093102503

Submarine Cable

1.Voltage:1KV220kv,2.Insulation:XLPE, 3.Conductor:copper/aluminium

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Standard: ASTM, IEC, BS, DIN etc.

1 – Polyethylene, 2 – Mylar tape, 3 – Stranded steel wires, 4 – Aluminium water barrier

5 – Polycarbonate, 6 – Copper or aluminium tube, 7 – Petroleum jelly, 8 – Optical fibers

1. Application:

A submarine communications cable is a cable laid on the sea bed between land-based stations to carry telecommunication signals across stretches of ocean. The first submarine communications cables, laid in the 1850s, carried telegraphy traffic. Subsequent generations of cables carried telephone traffic, then data communications traffic. Modern cables use optical fiber technology to carry digital data, which includes telephone, Internet and private data traffic.

Modern cables are typically about 25 millimetres (0.98 in) in diameter and weigh around 1.4 kilograms per metre (0.4 lb/ft) for the deep-sea sections which comprise the majority of the run, although larger and heavier cables are used for shallow-water sections near shore. [1] [2] Submarine cables connected all the world's continents except Antarctica when Java was connected to Darwin, Northern Territory, Australia in 1871 in anticipation of the completion of the Australian Overland Telegraph Line in 1872 connecting to Adelaide, South Australia and thence to the rest of Australia.

The submarine cables made by our company is armoured with high-tensile steel wire and used with technologies of water-proof and corrosion-proof to ensure the superior properties, test are performed in accordance with IEC60055, IEC60502 and methods recommended.

We are devoting ourselves these years to research and produce submarine cable, which can suit for seabed and sea area ambient condition, ocean physics characteristic and requirements of laying underwater, with waterproof, anti-corrosion, good machine performance and so on.

2. Specification

Conductor: Copper conductor, circular stranded compacted, water blocked, Conductor Screening: Extruded semi-conductive compound

Insulation: XLPE, Insulation Screening: Extruded semi-conductive compound, Screen: Copper wires and copper helix, swelling powder

Laminated Core Sheath: Aluminium tape bonded to overlaying PE sheath

Fillers: Polypropylene filler, Fibre-Optic Element: Fibre optic cable, Separator: Binder tapes

Bedding Layer: Polypropylene strings, Armour: Galvanized steel wires., Serving: Hessian tapes, bituminous compound, polypropylene strings

3. Parameter:

Type of fiber			B1.1		B4
Wavelength(nm)			1310	1550	1550
Attenuation coefficient(max)(dB/km)			0.36	0.22	0.22
PMD	M		20		20
	Q		0.01%		0.01%
	PMDQ (max)		0.5ps/km1/2		0.5ps/km1/2
Zero-dispersion Wavelength(nm)			1300~1324		——
Zero-dispersion Slope (max) ps/(nm2·km)			0.093		——
Absolute value of Chromatic Dispersion ps/(nm·km)		1288~1339nm	3.5		——
		1271~1360nm	5.3		——
		1550nm	18		——
		1530~1565nm	——		0.1~10.0
		Dmax-Dmin 1530~1565nm	——		5
cut-off wavelength lcc(nm)			≤1260		≤1480
Note: If specification at 1600nm is required, Please make it out in the ordering contract.

4. Structure and Mechanical Characteristics of Cable

Fibre Count	Steel Wire mm	PE Sheathed Steel Wire mm	Loose Tube Size mm	Tubes	Fillers	Cable Diameter mm	Cable Weight kg	Strength Long/Short Term N	Crush Resistance Long/Short TermN/ 100mm
4~6	1.6	/	1.4/2.1	1	4	20	937	10000/20000	3000/5000
8~12	1.6	/	1.4/2.1	2	3	20	938	10000/20000	3000/5000
14~18	1.6	/	1.4/2.1	3	2	20	938	10000/20000	3000/5000
20~24	1.6	/	1.4/2.1	4	1	20	939	10000/20000	3000/5000
26~30	1.6	/	1.4/2.1	5	0	20	939	10000/20000	3000/5000
32~36	1.9	/	1.8/2.6	3	2	21.3	1064	10000/20000	3000/5000
38~48	1.9	/	1.8/2.6	4	1	21.3	1065	10000/20000	3000/5000
50~60	1.9	/	1.8/2.6	5	0	21.3	1066	10000/20000	3000/5000
62~72	1.9	2.7	1.8/2.6	6	0	22.1	1133	10000/20000	3000/5000
74~84	2.2	3.6	1.8/2.6	7	0	23	1225	10000/20000	3000/5000
86~96	2.2	4.4	1.8/2.6	8	0	23.8	1307	10000/20000	3000/5000
98~108	2.2	5.3	1.8/2.6	9	0	24.7	1380	10000/20000	3000/5000
110~120	2.2	6.1	1.8/2.6	10	0	25.5	1467	10000/20000	3000/5000
122~132	2.2	6.9	1.8/2.6	11	0	26.3	1553	10000/20000	3000/5000
134~144	2.2	7.8	1.8/2.6	12	0	27.2	1631	10000/20000	3000/5000
