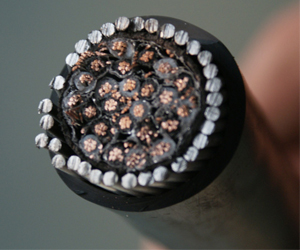

Individual Screen Armoured control cable Cable


1.Voltage rating: 450/750V,600/1000V, 2.Sheath: PVC or PVC of flame retardance and other property, 3.Standard: IEC60227

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Individual Screen Armoured control cable Cable Feature:
Conductors: 1.3sqmm: Class 1 solid copper, 0.5sqmm Class 5 flexible copper   Insulation: PE (Polyethylene)   Screen: CAM (Collective aluminium mylar)
Sheath/Jacket: PVC (Polyvinyl chloride)   Colour: Green & Yellow     Voltage: 300/500v
Standards: BS4937 International thermocouple reference tables. Extension & compensating cables. Tolerances and identification
Technical information:    Conductor: Bare stranded copper conductor--class 5 IEC228;    Insulation/Sheath: PVC or PVC of flame retardance and other property
Operating temperature: 70°C
Application:    Used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction.
1: AC rated voltageU0/U:300/500V. Long term working temperature of cable conductor is 70ºC & 105ºC for cable with PVC insulation, 70ºC for cable with PE insulation and 90ºC for cable with XLPE insulation.(XLPE insulation includes saline XLPE & irradiation XLPE insulation.)
2: Min. environment temperature is -40ºC for fixed  laying and -15ºC for non-fixed laying. Environment temperature shall be no less than 0ºC for installing.
 3: Min.bending radius allowed by cable is no less than 6 times that of cable OD for non-armored soft cable or braided shielding cable and 12 times that of cable OD for cable with metallic tape wrapped shielding or steel wire/steel tape armor.
Remark:
 1.the cable can be with copper braided screen or steel wire armor and other features.
 2.The cable can be of flame retardance, fire resistance and environment friendly or other property.
Control Cable Parameter:

Type

Model Name

Application

KVV

(KYJV)

Copper-core PVC(XLPE)insulated PVC sheathed control cable

Laid in fixed positions such as indoor, in cable channel and pipe, etc.

KVVP

(KYJVP)

Copper-core PVC (XLPE)insulated PVC sheathed braid shielded control cable

Laid in fixed positions such as indoor, in cable channel and pipe, etc.

KVVP2

(KYJVP2)

Copper-core PVC (XLPE)insulated PVC sheathed copper-tape shielded control cable



Laid in fixed positions such as indoor, in cable channel and pipe, etc.

KVV22

(KYJV22)

Copper-core PVC (XLPE)insulated PVC sheathed steel-tape armored control cable



Laid in fixed positions able to bear large mechanical force such as indoor, in cable channel and pipe,and underground etc

KVVP2-22

(KYJVP2-22)

Copper-core PVC (XLPE)insulated PVC sheathed copper-tape shielded steel-tape armored control cable



Laid in fixed positions able to bear large mechanical force such as indoor, in cable channel and pipe, and underground etc

KVVR

(KYJVR)

Copper-core PVC (XLPE)insulated PVC sheathed flexiblecontrol cable

Laid indoor where movement is requiring flexible cables

KVVRP

(KYJVRP)

Copper-core PVC (XLPE)insulated PVC sheathed braid shielded flexible control cable

flexible control cable Laid indoor where movement is requiring flexible and shielded cables
