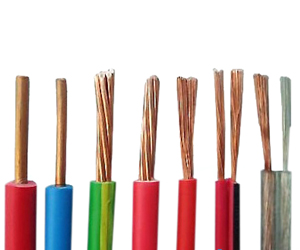

H07V-U solid copper wire

1.voltage:450/750V,2.Conductor: solid copper,3.Insultion:PVC;

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Product feature:

Conductor Material: solid copper;Rated voltage: 450/750V;Insulation Material: PVC; Standard: HRN HD 21.3 S3 IEC 60227-3 DIN VDE 0281 part 3

Application: Insulated conductor is used for laying in electric-installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth.

Construction:

1. Conductor: bare copper conductor of class 1 (solid) acc, to IEC 60228 / HD 383 / DIN VDE 0295

2. Insulation: PVC compound TI1 acc. to IEC 60227-3 / HD 21.3 S3 / DIN VDE 00281 part 3 Conductor acc. to IEC 60446 i.e. EN 60446 (corresponding to DIN VDE 0293); Colour:(corresponding to DIN VDE 0293)

3.Temperature range: during installation: +5 °C up to+70 °C,fixed installed: -30 °C up to+70 °C, at short circuit of max. 5 s.: up tp 160 °C,ambient temperature at storage: up pt 40 °C, Nominal voltage: Uο/U = 450/750 V, Test voltage: 2500 V, Minimal inner bending radius: 4D, Behaviour in fire: IEC 60332-1

Parameter:

Dimensions – conductor cross-section	Construction of individual conductor	External diameter	Insulation thickness	Conductor resistance at 20 °C	Specific. el. resistance of insulation at 70°C	Cu weight	Cable weight	Packing*
	nominal	min-max.	nominal	max.	min.		approx
mm²	n x mm	mm	mm	Ω/km	MΩkm	kg/km	kg/km
1,5	1 x 1,38	2,6 - 3,2	0,7	12,10	0,011	14,4	20	c.100
2,5	1 x 1,78	3,2 - 3,9	0,8	7,41	0,010	24,0	31	c.100
4	1 x 2,26	3,6 - 4,4	0,8	4,61	0,0087	38,4	46	c.100
6	1 x 2,70	4,1 - 5,0	0,8	3,08	0,0070	57,6	65	c.100
10	1 x 3,5	5,3 - 6,4	1,0	1,83	0,0072	96,0	110	c.100
