ACSR Conductor

1.Construction:Aluminum Conductor Steel Reinforced.2.suitable for laying across rivers valleys and the places where special geographical features exist

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

ACSR Conductor feature:

1. Conductor: Hard-Drawn 1350-H19 Aluminum Wires, Minimum Purity 99.45%, 2. Reinforcement: Galvanized Steel Wires (Zinc-Coated)

3. Standards: ASTM B232, 4. Best Seller: Turkey, Sparrow, Raven, Penguin, Waxwing, Dove, Rail, Pheasant, Martin

5. Construction (Aluminum/Steel): 6/1, 7/1, 8/1, 12/7, 16/19, 24/7, 26/7, 30/7, 30/19, 36/1, 45/7, 54/7, 54/19, 72/7, 76/19, 84/196. Cross-Sectional Area: 6~4/0 awg, 80~2312 mcm (80~211.3 mcm for Standard High-Strength Conductor), 7. Galvanization: Class A, B or C

8. Grease Corrosion Protection: Available upon Request

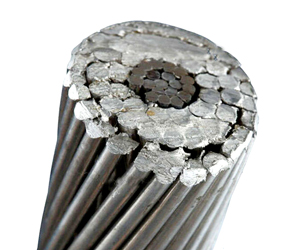

ACSR Conductor Description:

ACSR, Aluminum Conductor Steel Reinforced, is a concentrically stranded conductor, composed of one or more layers ofhard-drawn 1350-H19 aluminum wires helically stranded around an inner layer of hight-strength galvanized steel wires.

Thesteel wire is available in Class A, B or C galvanization for corrosion protection. Aluminum wires of the same nominal diameter aretwistd together in concentric layers. For more than one layer of conductor, successive layers are twisted in opposite directions which is defined as right hand lay (Z) or left hand lay (S). Additional corrosion protection is also available through application of grease to the core or infusion of the complete conductor with grease.

ACSR Conductor has long been used as overhead high tension transmission lines and are recognized by its economy, dependabilityand favorable strength / weight ratio. ACSR combines the light weight and good conductivity of aluminum with the high tensilestrength and ruggedness of steel. In line design, this can provide higher tensions, less sag, and longer span

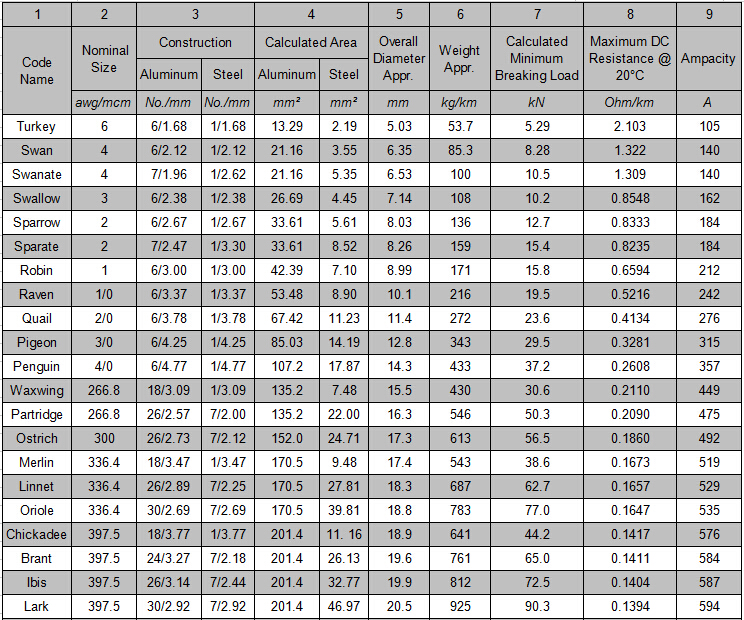

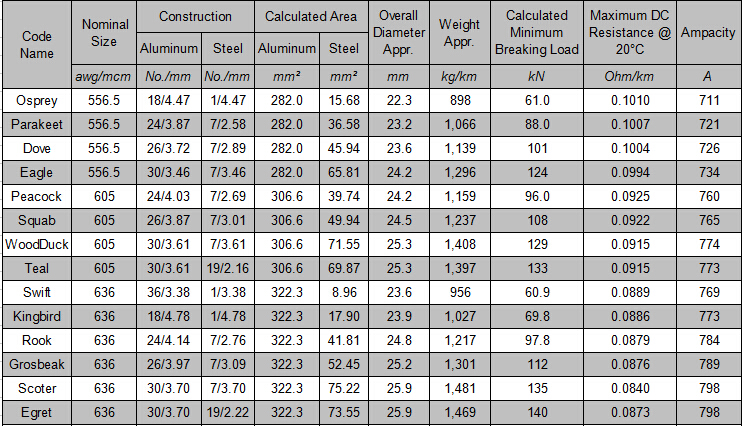

ACSR Conductor parameter:

Code name	Nominal aluminium area	Stranding and wire diameter		Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	Nominal aluminium area	Al	Steel	Sectional area of aluminium	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	mm2	No./mm		mm2	mm2	mm	kg/km	Ω/km	kN
RABBIT	50	6/3.35	1/3.35	52.88	61.7	10.05	214	0.5426	18.35
DOG	100	6/4.72	7/1.57	105	118.5	14.15	394	0.2733	32.7
WOLF	150	30/2.59	7/2.59	158.1	194.9	18.13	726	0.1828	69.2
DINGO	150	18/3.35	1/3.35	158.7	167.5	16.75	506	0.1815	35.7
LYNX	175	30/2.79	7/2.79	183.4	226.2	19.53	842	0.1576	79.8
ZEBRA	400	54/3.18	7/3.18	428.9	484.5	28.62	1621	0.0674	131.9
