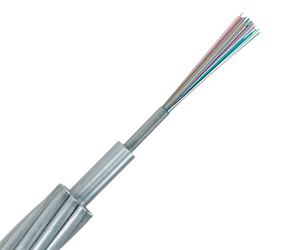

OPGW cable


Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

OPGW description:

1. OPGW cable is the short form of Optical Fiber Composite Overhead Ground Wire.

2.OPGW cable is suit for installation on new power lines with double function of ground wire and communication, especially for installation on normal voltage and extra high voltage

 power lines. OPGW can replace conventional ground wire of old power lines with increasing fiber communications function.

3. OPGW cables conduct short circuit current and provide lighting resistance.
4. OPGW cables are usually two structures. The central tube OPGW cable can obtain maximum

optical fiber excess length in a smallest steel tube. The diameter of stainless steel tube is bigger than that of ACSR wire and aluminum alloy wire. The stainless steel tube is placed

in the center of the stranded structure of the OPGW cable. Stranded OPGW cable can obtain secondary excess length; the diameter of stainless steel tube is consistent with

diameter of aluminum alloy wire.

OPWG Application:
Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire

and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace conventional ground wire

of old power line with increasing fiber communication function. They conduct short circuit current and provide lightning resistance.

OPGW Cable parameter:

Cable model

OPGW-60

OPGW-70

OPGW-90

OPGW-110

OPGW-130

Number /diameter(mm) of stainless steel tube

1/3.5

2/2.4

2/2.6

2/2.8

1/3.0

Number /diameter of AL wire(mm)

0/3.5

12/2.4

12/2.6

12/2.8

12/3.0

Number /diameter of ACS wire(mm)

6/3.5

5/2.4

5/2.6

5/2.8

6/3.0

Diameter of Cable (mm)

10.5

12

13

14

15

RTS(KN)

75

45

53

64

80

Cable weight (kg/km)

415

320

374

432

527

DC resistance(200C W/km)

1.36

0.524

0.448

0.386

0.327

Modulus of elasticity(Gpa)

162

96.1

95.9

95.6

97.8

coefficient of Linear thermal expansion(1/×10-6)

12.6

17.8

17.8

17.8

17.2

Short circuit capacity (kA²s)

24

57.3

78.9

105.8

150.4

Max. operation temperature (C)

200

200

200

200

200

Max. fiber count

48

32

48

52

30
